PDFX — PoDoFo 1.x Text Extractor

Lightweight PDF text extractor with a C++ core (PoDoFo 1.x), a Node.js native addon, and an Electron GUI.

PDFX

PDFX — PoDoFo 1.x Text Extractor

Overview

Core: C++ static library pdfx that extracts text from PDFs via PoDoFo 1.x.
CLI: pdfx_cli wraps the core for command-line extraction (txt or json output).
Node addon: pdfx.node exposes the extractor to Node via N-API (node-addon-api).
GUI: Minimal Electron app that lets you open a PDF, extract pages (ranges), search, copy, and save results.

Repository Layout

cpp/                       # C++ core + CLI (CMake)
  include/PdfTextExtractor.hpp
  src/PdfTextExtractor.cpp
  src/cli_main.cpp
  CMakeLists.txt
cmake/FindOrFetchPoDoFo.cmake  # Finds system PoDoFo or vendors from source
node/
  addon/                   # Node native addon (cmake-js)
    binding.cpp
    CMakeLists.txt
    package.json
    test-addon.sh
  gui/                     # Electron app (main + preload + renderer)
    main.js
    preload.cjs
    renderer/index.html
    package-lock.json
tests/
  some.pdf                 # Minimal one-page PDF
  some_pdf.py              # Script that generates a minimal PDF
LICENSE
README.md                  # (this file supersedes the minimal stub)

Requirements

A C++17 compiler and CMake ≥ 3.21.
PoDoFo 1.x:
- Prefer a system package (found via find_package(PoDoFo CONFIG QUIET)).
- If not found, the build can vendor PoDoFo from GitHub (see Configuration).
For the Node addon:
- Node.js with headers (handled by cmake-js).
- npm to install dev dependencies listed in node/addon/package.json.
For the GUI:
- Node.js and npm.
- electron (already present in node/gui/package-lock.json, see Run: Electron GUI).

Build: C++ Core (library + CLI)

# from repo root
cmake -S cpp -B build/cpp -DCMAKE_BUILD_TYPE=Release
cmake --build build/cpp --target pdfx pdfx_cli -j

Artifacts:

Static library: build/cpp/libpdfx.*
CLI executable: build/cpp/pdfx_cli[.exe]

Install (optional):

cmake --install build/cpp --prefix /your/prefix

Use: CLI

Usage (from cpp/src/cli_main.cpp):

Usage: pdfx_cli -i input.pdf [-o out.txt] [--pages 1-3,5] [--format txt|json]

Examples:

# Extract all pages to stdout as text
build/cpp/pdfx_cli -i tests/some.pdf

# Extract page 1 and 3..5 to a file
build/cpp/pdfx_cli -i tests/some.pdf --pages 1,3-5 -o extracted.txt

# JSON output
build/cpp/pdfx_cli -i tests/some.pdf --format json

Verification steps:

Expect non-empty text output for tests/some.pdf.
With --format json, output has a pages array; each item contains "index" and "text".

Build: Node.js Native Addon

# from repo root
cd node/addon
npm i
npm run build        # uses cmake-js; produces build/Release/pdfx.node

# (optional) print the full path to the built artifact
npm run print:artifact

Test the addon binary:

# quick export inspection
./test-addon.sh --build
# => prints exported methods: [ 'extractAll', 'extractPages' ]

Use: Native Addon (from Node)

// replace with the actual path the build printed for pdfx.node
const addon = require('./node/addon/build/Release/pdfx.node');

(async () => {
  const pages = addon.extractAll('tests/some.pdf');
  console.log('page count:', pages.length);
  console.log('page1:', pages[0]);

  const some = addon.extractPages('tests/some.pdf', [0]); // zero-based indices
  console.log('only page 1:', some[0]);
})();

Verification steps:

extractAll() returns an array of strings (one per page).
extractPages(path, [0,2]) returns only the selected pages in order.
Invalid page indices throw (binding forwards C++ exceptions).

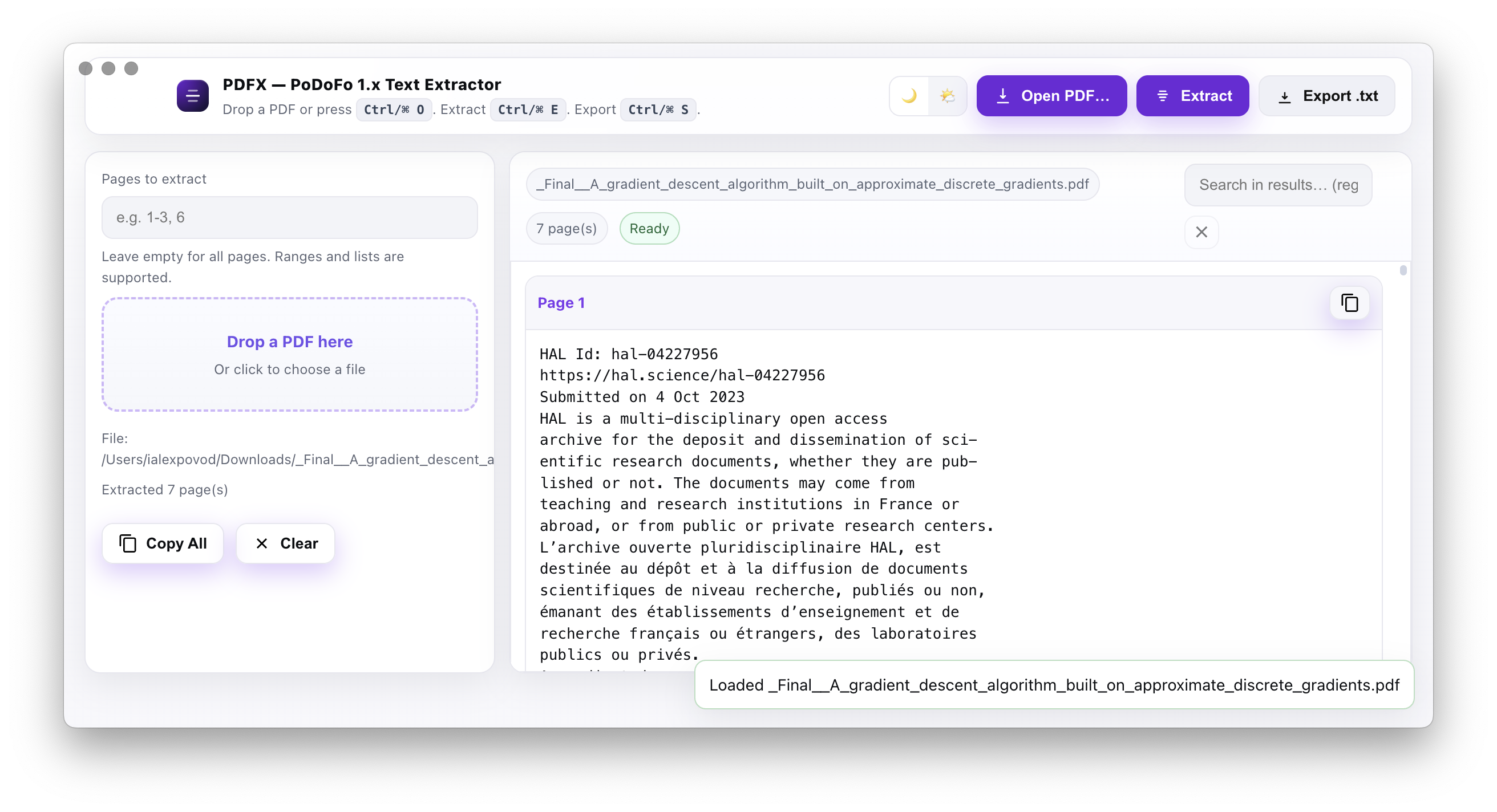

Run: Electron GUI

The GUI consists of:

node/gui/main.js (Electron main, ESM)
node/gui/preload.cjs (context-isolated preload, CJS)
node/gui/renderer/index.html

It expects the native addon at one of:

node/addon/build/Release/pdfx.node (repo dev build), or
<app resources>/native/pdfx.node (if you package later)

Minimal run (dev)

Note: node/gui currently lacks a package.json. Create one as shown below, then install and run Electron.

{
  "name": "pdfx-gui",
  "version": "0.1.0",
  "type": "module",
  "main": "main.js",
  "private": true,
  "scripts": {
    "start": "electron ."
  },
  "devDependencies": {
    "electron": "^31.3.0"
  }
}

Then:

# build the native addon first so the GUI can load it
(cd node/addon && npm i && npm run build)

# run the GUI
cd node/gui
npm i
npm run start

Keyboard shortcuts (from the renderer UI):

Open PDF: Ctrl/⌘ + O
Extract: Ctrl/⌘ + E
Export .txt: Ctrl/⌘ + S

GUI features visible in renderer/index.html:

Page range parsing (e.g. 1-3, 6) → zero-based indices internally.
Live search with regex highlighting.
Copy per page / copy all / clear output.
Save extracted text to .txt.

Public APIs

C++: `PdfTextExtractor`

Header: cpp/include/PdfTextExtractor.hpp

struct ExtractOptions {
  bool preserve_layout = false; // currently unused by implementation
};

class PdfTextExtractor {
public:
  std::vector<std::string> extractAll(const std::string& pdfPath,
                                      const ExtractOptions& opts = {});

  std::vector<std::string> extractPages(const std::string& pdfPath,
                                        const std::vector<int>& pageIndices,
                                        const ExtractOptions& opts = {});

private:
  std::string extractOnePage(PoDoFo::PdfMemDocument& doc, int pageIndex,
                             const ExtractOptions& opts);

  static std::string toUtf8(const std::string& s);
};

Implementation notes (from PdfTextExtractor.cpp):

Loads via PoDoFo::PdfMemDocument.
For each page, PdfPage::ExtractTextTo(std::vector<PdfTextEntry>&) is used.
Page text is built by concatenating e.Text entries with '\n'.
Current toUtf8 is a pass-through (no re-encoding).

Node addon exports

File: node/addon/binding.cpp

// const addon = require('./build/Release/pdfx.node')
addon.extractAll(path: string)            // -> string[] per page
addon.extractPages(path: string, pages: number[]) // -> string[] for requested pages

Throws a JS TypeError on invalid arguments.
Forwards C++ exceptions to JS as Error("pdfx native error: ...").

Renderer preload API (`window.pdfx`)

File: node/gui/preload.cjs

window.pdfx = {
  selectPdf(): Promise<string|null>,                   // showOpenDialog; returns path or null
  extractAll(filePath: string): Promise<string[]>,     // IPC -> addon
  extractPages(filePath: string, pages: number[]): Promise<string[]>,
  saveText(defaultName: string, text: string): Promise<string|null>, // showSaveDialog
  onError(cb: (msg: string) => void): () => void       // subscribe to startup load errors
}

The main process (node/gui/main.js) resolves the addon from:
- ../addon/build/Release/pdfx.node (dev), or
- <resources>/native/pdfx.node (packaged).
If loading fails, the renderer receives an error via pdfx:onError.

Testing assets

Ready-made PDF: tests/some.pdf (one page; Latin-1 text operators, quotes, TJ array, etc.).

Generate a minimal PDF:

python tests/some_pdf.py
# writes ./some.pdf in the current working directory

Configuration: PoDoFo discovery or vendoring

Handled by cmake/FindOrFetchPoDoFo.cmake:

Try system PoDoFo first (find_package(PoDoFo CONFIG QUIET)).
If not found, vendor from source:
- Git repo: https://github.com/podofo/podofo.git
- Tag: PDFX_PODOFO_TAG (default: "1.0.0")

Options:

-DPDFX_VENDOR_DEPS=ON — force vendored build.
-DPDFX_PODOFO_TAG=<tag-or-branch> — pick a different PoDoFo ref when vendoring.

The module sets:

PDFX_PoDoFo_TARGET — target to link against.
PDFX_PoDoFo_INCLUDE_DIRS — include directories passed to the pdfx target.

License

MIT — see LICENSE.
